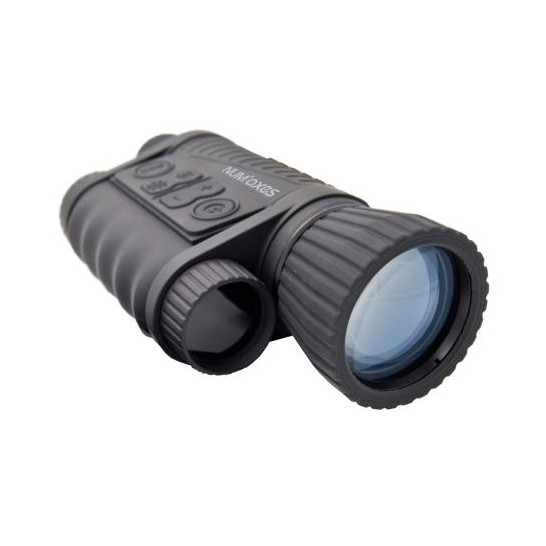

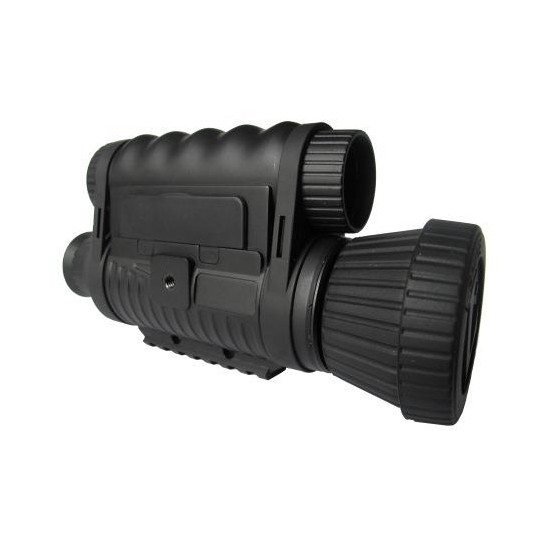

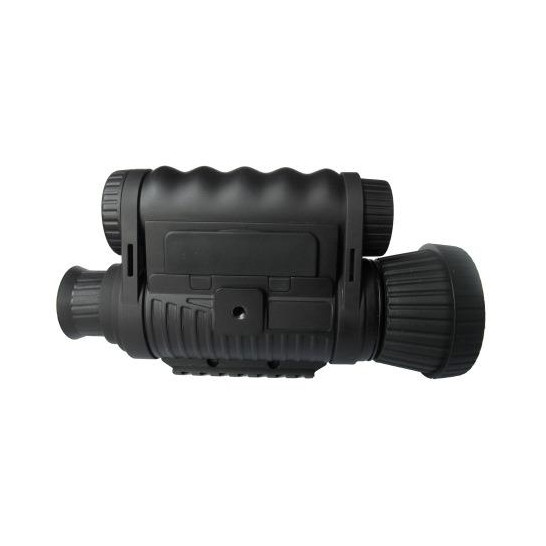

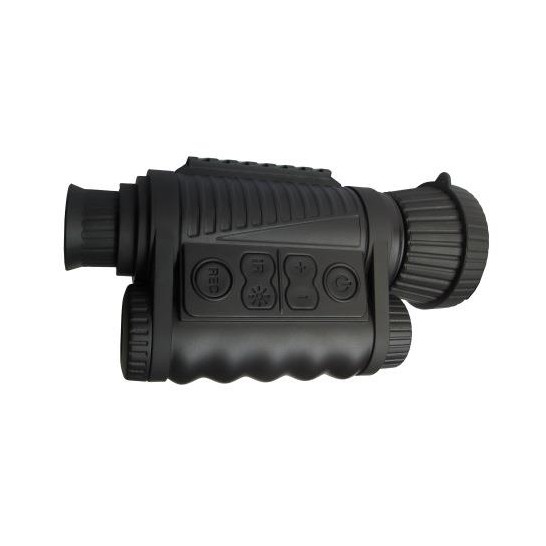

NUM’axes Night Vision Monocular – Model VIS1012

The VIS1012 monocular is a hand-held digital night vision viewing system which
offers great image quality. This product is guaranteed to provide optimum results
from dawn to absolute darkness. You can use it day or night. It’s suitable for many
outdoor activities (fishing, hunting, hiking, boating, wild camping and nature observation)
and also for search and rescue. Thanks to this monocular, you can observe a subject at night,
and you can also record a still photo or video (with audio) clip on a MicroSD card.

Advantages

• Maximum effective magnification: 5 x 6 (30x)
• Colour viewing in the daytime
• Can record photos or videos (with audio) on a MicroSD card (up to 32 Gb – not supplied)

Night vision monocular features

• Optical magnification: 6X
• Digital zoom magnification: 5X
• Objective lens: 50 mm
• Infrared illuminator: 850 nm
• Viewing range: up to 1148 ft / 350 m
• Field view at 100 yds/m: 20.5 ft / 6.8 m

Reliable and efficient

• 2-year warranty
• Waterproof grade: IPX4

Night vision monocular specifications

• Weight: 765 g
• Dimensions: 62 x 105 x 208 mm
• Power: 4 LR06 AA batteries (not supplied)
• Built-in accessories mounting rail (enables the user to attach a more powerful IR illuminator or other compatible accessories)
• Monopod or tripod-mounting capabilities

Package Contents

• Night vision monocular
• USB cable
• TV cable
• Pouch
• User’s guide
